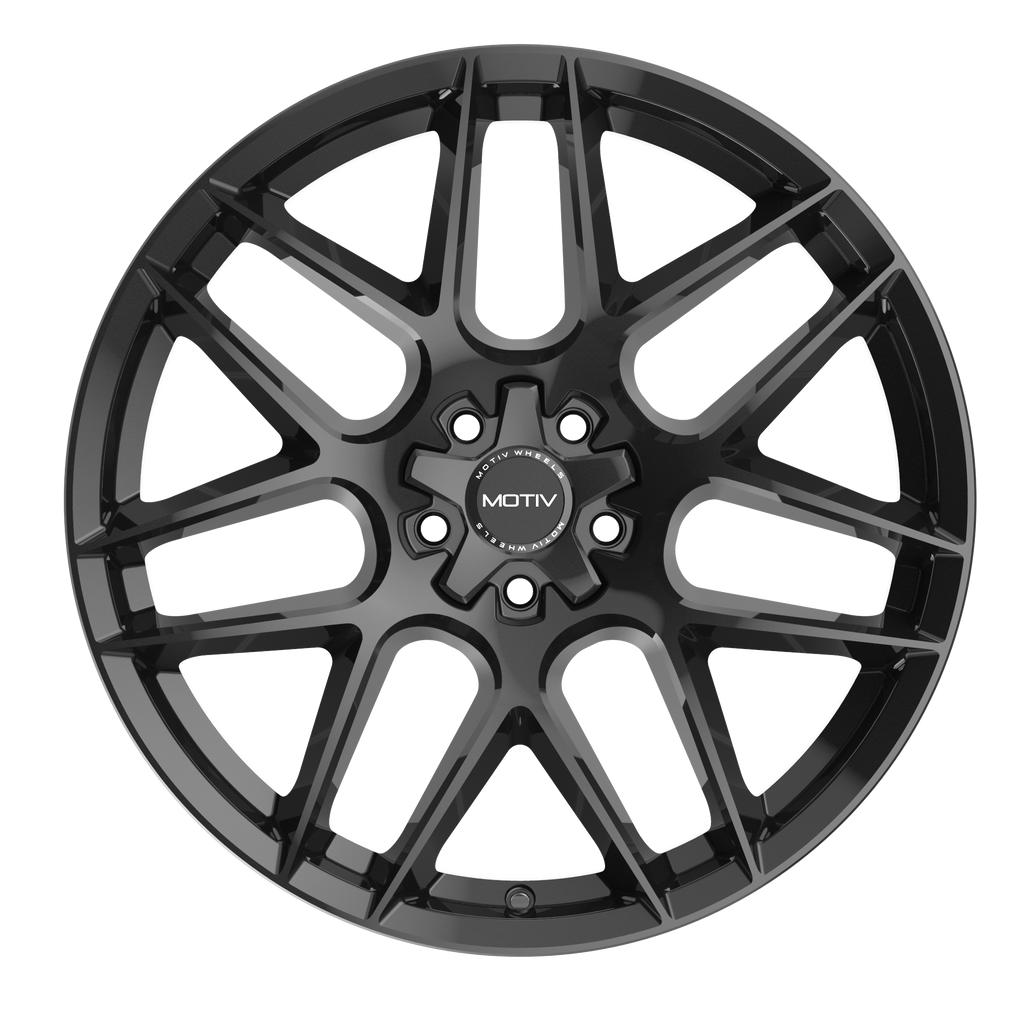

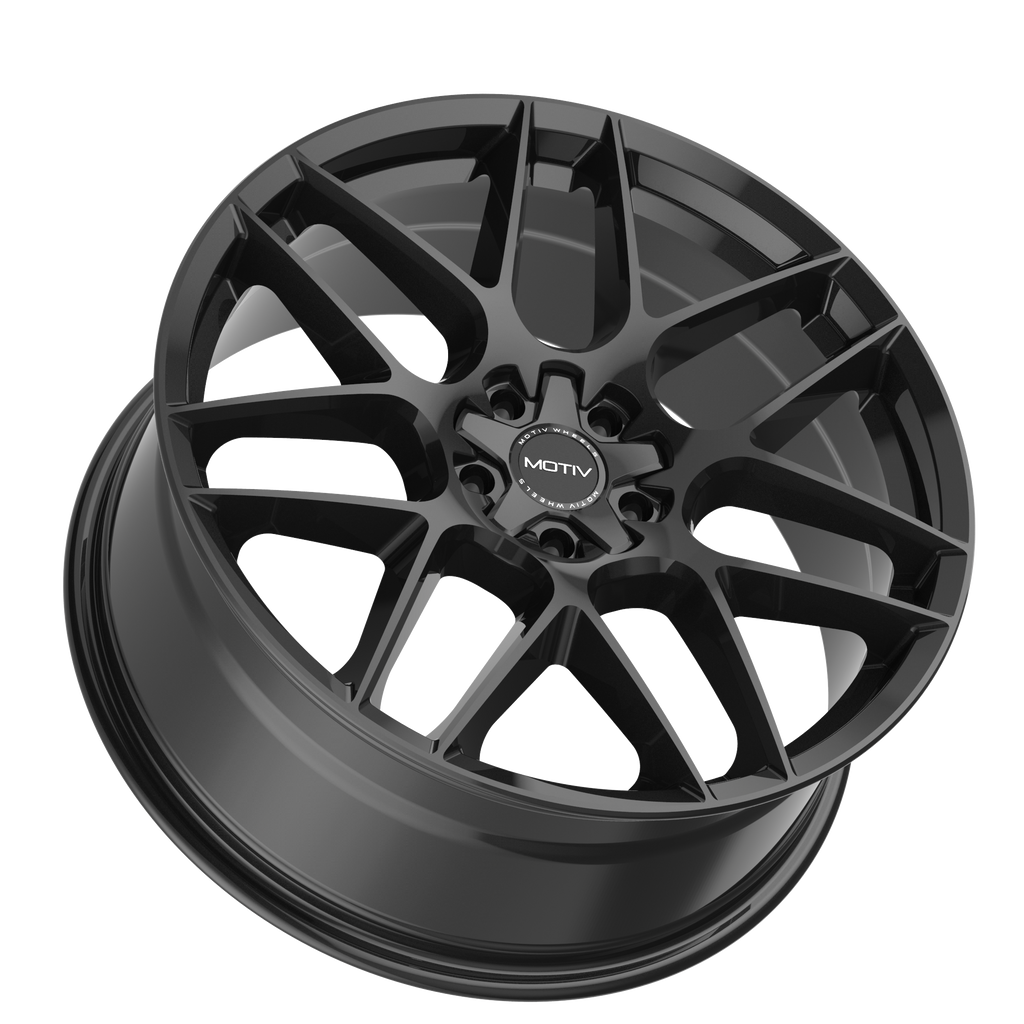

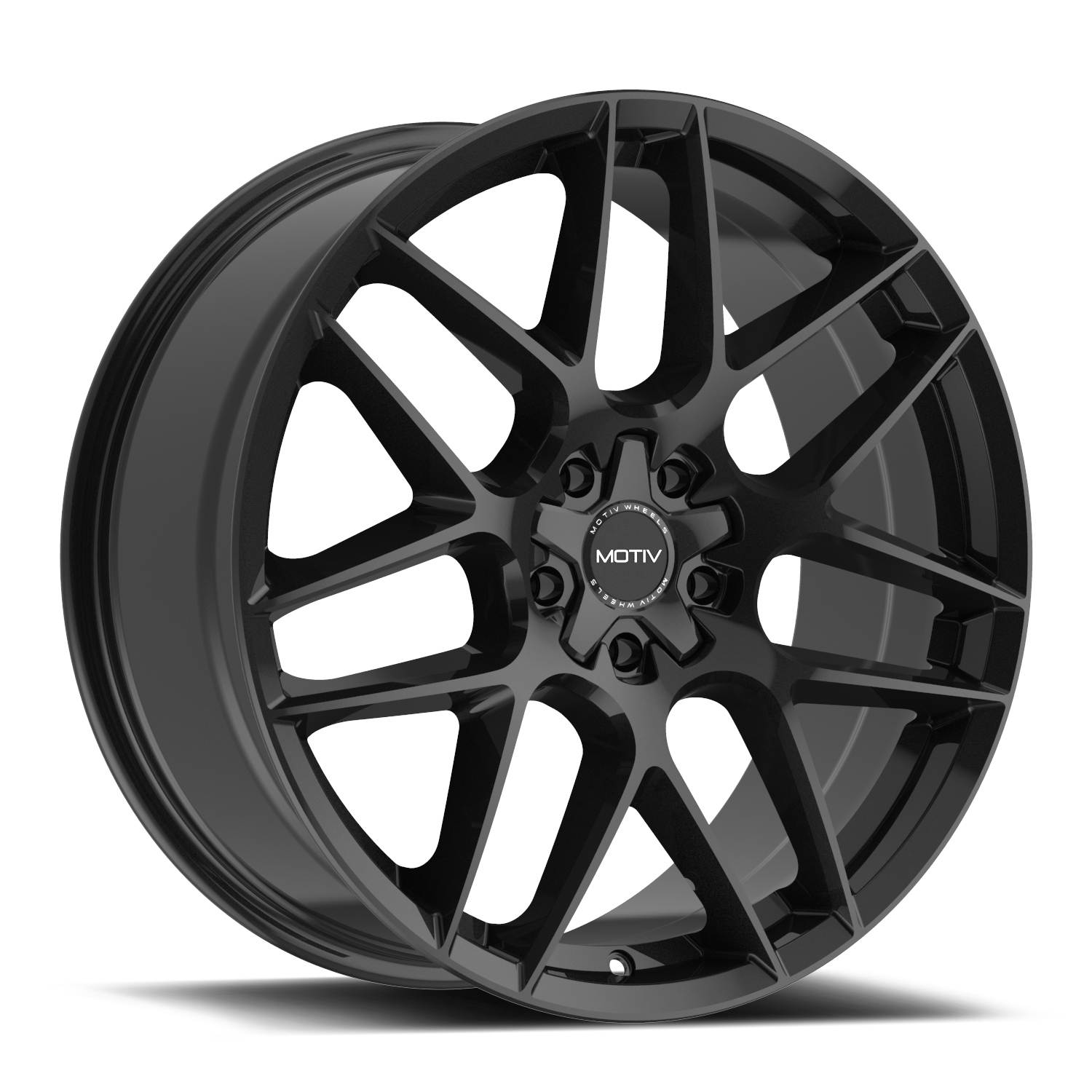

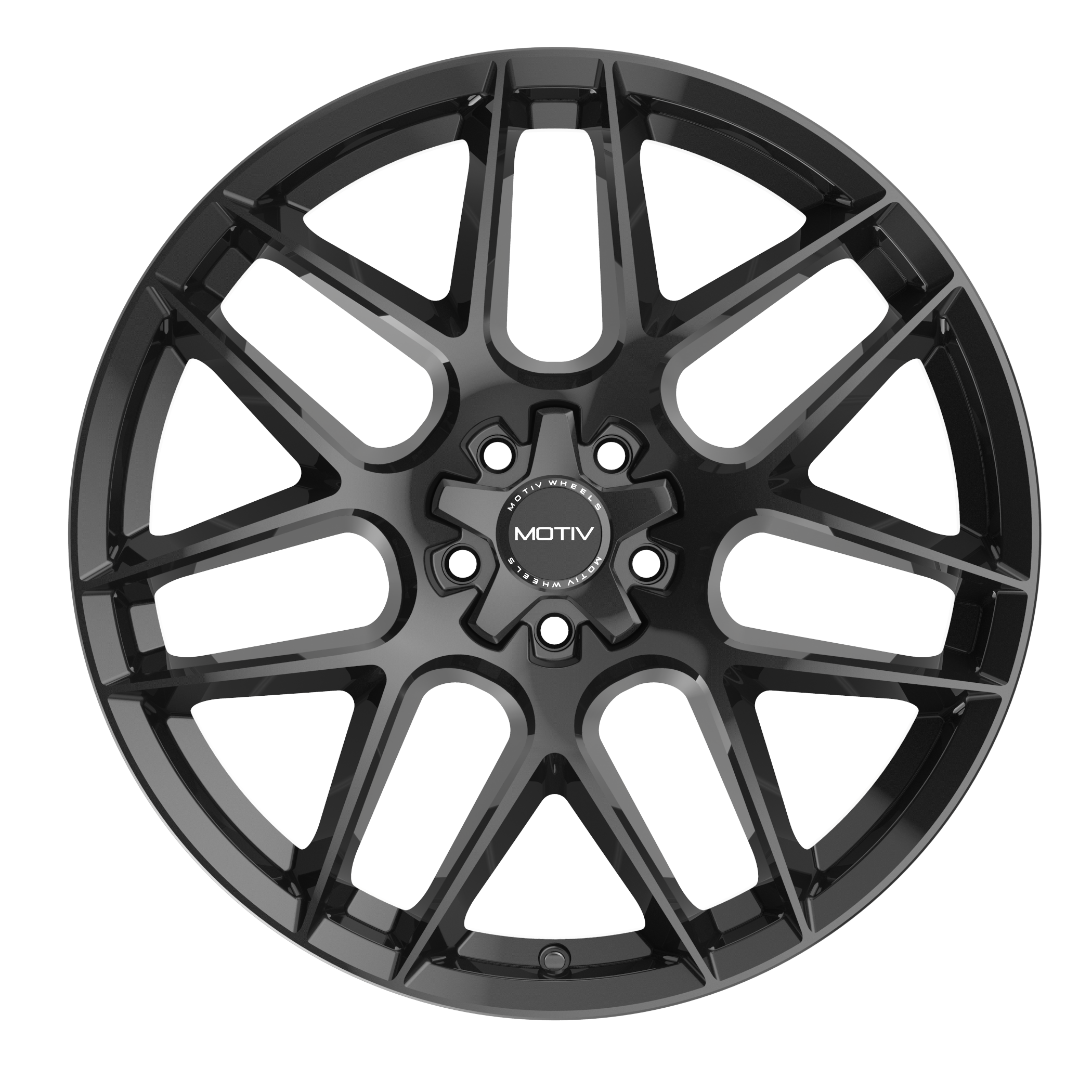

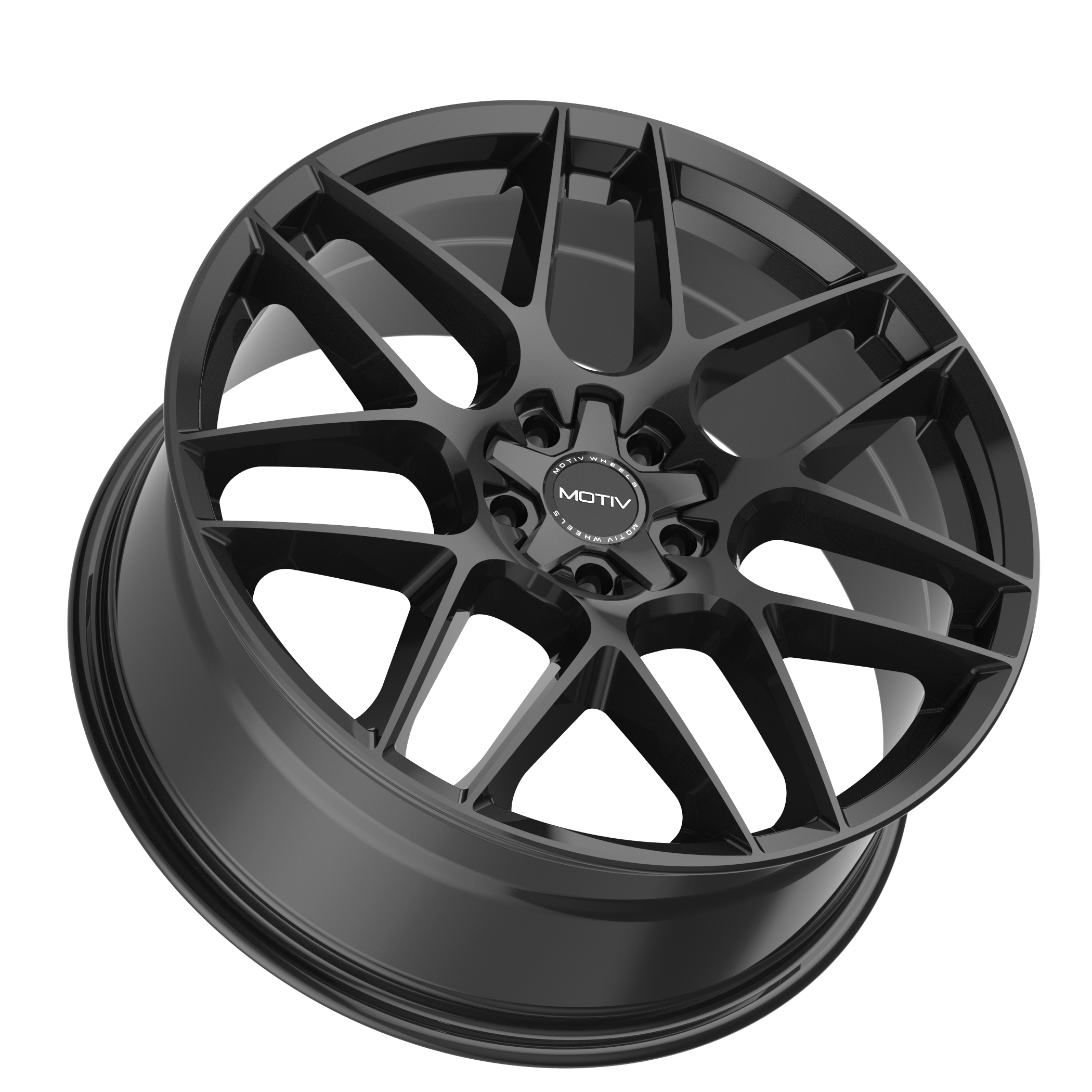

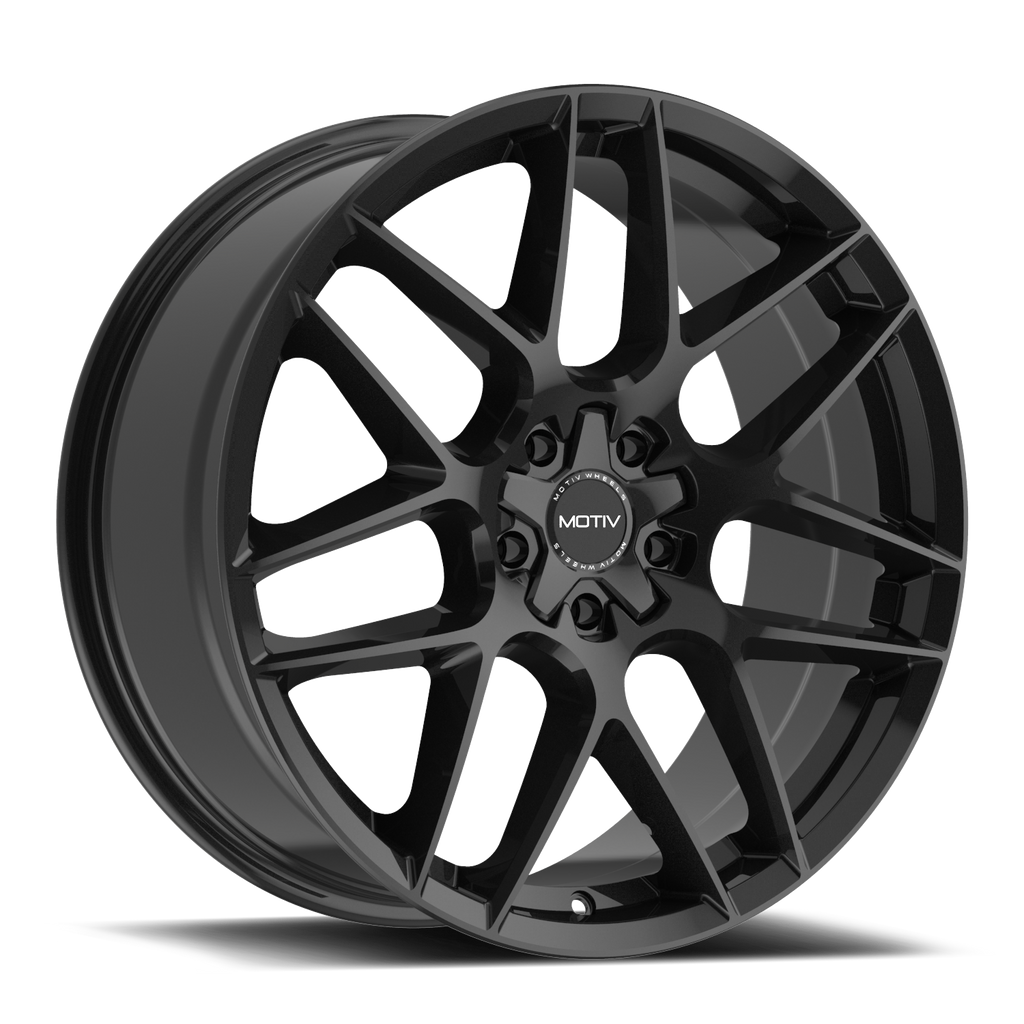

Motiv 435B Foil 20x8.5 Cast Aluminum Wheel with 5x108 Bolt Pattern and +40 Offset
PRODUCT DETAILS
The Motiv 435B Foil wheel features a 20-inch diameter and 8.5-inch width, crafted from durable cast aluminum for reliable performance. Its sleek design is finished with a black (ATD Finish B) coating, offering both style and resistance to the elements. The wheel is designed with a 5-lug hole pattern and a 5x108 bolt pattern, making it compatible with a variety of vehicles. The hub bore measures 73.1 mm, ensuring a proper fit, while the backspacing of 6.32 inches provides optimal clearance for various suspension setups. The +40 mm offset enhances vehicle stance and handling, making it suitable for winter and all-season driving conditions. The load rating of 1,800 pounds ensures the wheel can handle demanding driving scenarios, and the weight of approximately 35.44 pounds strikes a balance between strength and weight savings. This wheel includes a replacement cap part number CAP-MH3-B21, providing a clean appearance after installation. Designed for versatility and durability, the Motiv 435B Foil wheel is an excellent choice for drivers seeking a dependable and stylish upgrade for their vehicle.
Features:
- Size: 20 inches diameter by 8.5 inches width
- Material: Cast aluminum construction for strength and lightweight performance
- Finish: ATD B black coating for corrosion resistance and style
- Bolt Pattern: Multi 5x108 bolt pattern compatible with select vehicles
- Hub Bore: 73.1 mm for proper hub fitment
- Offset: +40 mm for optimal vehicle stance and handling
- Backspacing: 6.32 inches for clearance and fitment
- Lug Nut Type: 60-degree conical seat for secure mounting
- Load Rating: 1,800 pounds capacity for demanding driving conditions
- Winter Designation: Suitable for all-season and winter driving
- Includes Replacement Cap: CAP-MH3-B21 for finished appearance
| Size: 20X8.5 |
| Hubcentricringincludedflag: N |
| Countryoforigin: CHINA |
| Upc: 00840112741220 |
| Winterdesignation: All Other |
| Hubcentricflag: N |
| Shortdescription: 435B FOIL |
| Wheeldiameter: 20 |
| Backspacing: 6.32 |
| Hubbore: 73.1 |
| Replacementcappartnumber: CAP-MH3-B21 |
| Boltcircle: Multi |
| Productlength: 22.75 |
| Productheight: 22.75 |
| Boltpattern2: 5X4.50 |
| Boltpattern1: 5X108 |
| Material: Cast Aluminum |
| Lugnuttype: 60 Degree Conical |
| Offsetdescription: HPO |
| Offset: +40 |
| Longdescription: 435B FOIL |
| Loadrating: 1800 |
| Productwidth: 11 |
| Numberoflugholes: 5 |
| Shippingweight: 35.44 |
| Map: 0 |
| Atdfinish: B |
| Wheelwidth: 8.5 |
